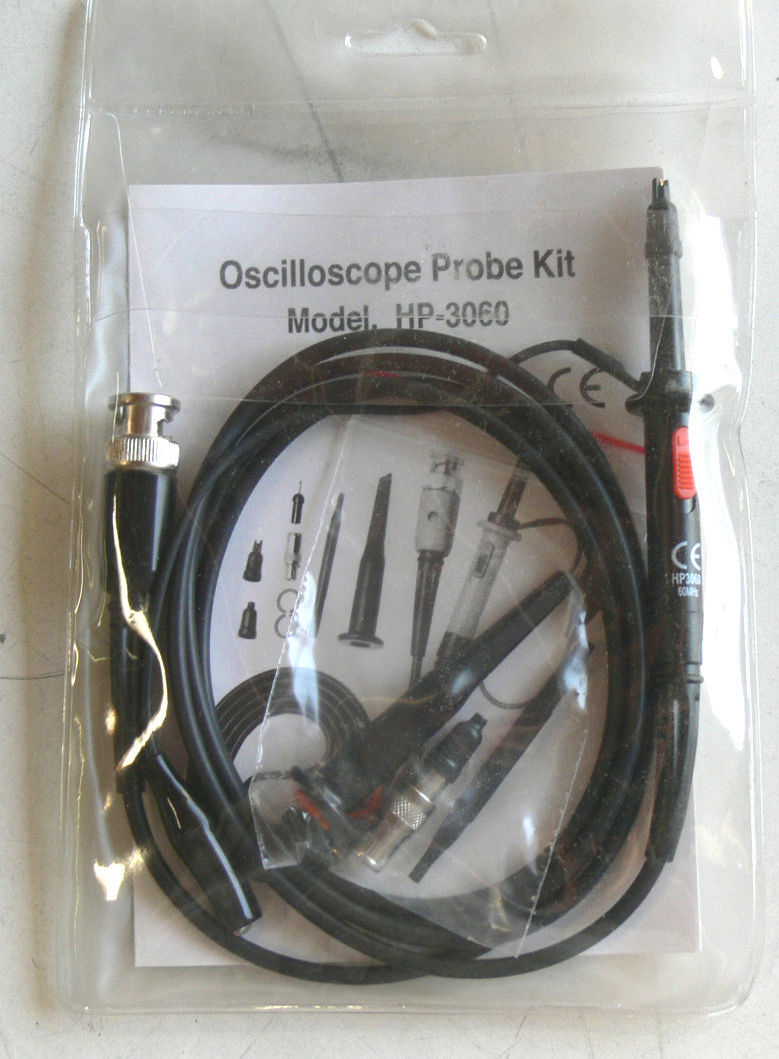

HP-3060 Oscilloscope Probe
SKU: HP-3060
|
Overview
Product Details
Oscilloscope Probes
HP-3060 Switch Selectable x1/ x10/ Ref Probe
65MHz SCOPE PROBE
Built in 3 position switch: X1, Ref, X10. 10 Meg ohms input impedance.
Fits all scopes with BNC connector
| Position x10 | ||
| Attenuation Ratio | 10:1 | |
| Bandwidth | DC to 60MHz | |
| Rise Time | 5.8nS | |
| Input Resistance | 10MΩ when used with oscilloscopes which | |
| have 1MΩ input. | ||
| Input Capacitance | Approx. 23 pF | |
| Compensation Range | 20 to 45 pF | |
| Working Voltage | 600V DC incl. peak AC derating with frequency. | |
| Position Ref | Probe tip grounded via 9MΩ resistor, oscilloscope | |
| input grounded. |
| Position x1 | ||
| Attenuation Ratio | 1:1 | |
| Bandwidth | DC to 6MHz | |
| Rise Time | 58nS | |
| Input Resistance | 1MΩ (Oscilloscope Input Resistance) | |
| Input Capacitance | 128 pF Plus oscilloscope capacitance. | |
| Working Voltage | 600V DC incl. peak AC derating with frequency. | |
| Cable Length | 1.4 Meters |
