TPI 9070 SMART VIBRATION METER vibration monitoring and analysis tool
SKU: TPI 9070
Our Price: $399.97
Quantity:
Add To Wishlist Add To Registry

Overview

Product Details

9070 Smart Vibration Meter



TPI offers the 9070 vibration monitoring and analysis tool

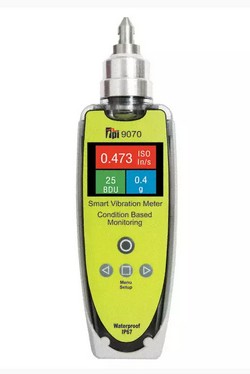

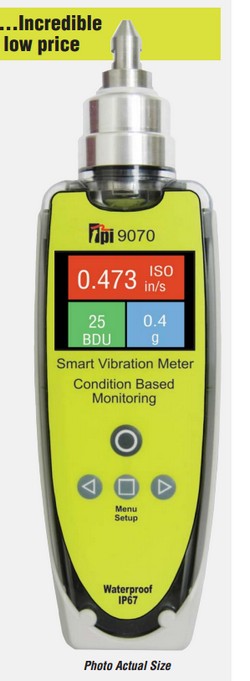

Image of TPI's 9070 Smart Vibration Meter

TPI's 9070 smart vibration meter offers vibration analysis at the touch of a button and analyzes and interprets readings. Overall machine and bearing conditions: vibration values are displayed with color-coded alarm levels for ISO values and Bearing Damage (BDU).

The 9070 is a simple-to-use vibration monitoring and analysis tool that allows easy display of vibration signals. The meter automatically per-forms vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment, and looseness.

The system is designed to enable a user to take vibration measurements from assets (e.g. pumps, motors, fans, and bearings). The unit displays vibration frequency plots and allows vibration severity and bearing condition to be monitored. Readings are easily saved and recalled with all alarm levels and settings stored in non-volatile flash memory. Run speed and machine type are entered with the intuitive Setup Wizard.


Features and Benefits:

  • ISO built-in alarms
  • Identifies bearing problems with BDU reading
  • Identifies problems with built-in band filters
    • 1X (unbalance)
    • 2X (misalignment)
    • 3X (looseness)
  • 800 line FFT (spectrum)
  • Ruggedized IP67 case
  • 3-year limited warranty
  • Full-color OLED display
  • Built-in accelerometer with stinger. Optional long stinger and magnetic mount available

  • Easily identify, bearing, balance, and alignment problems
  • ISO built-in alarms
  • Easily identify bearing problems with BDU reading
  • Built in band filters detect equipment problems:
  • 1X (unbalance), 2X (misalignment), 3X (looseness)
  • View complex issues with the 800-line spectrum with zoom and cursor
  • Ruggedized IP67 design
This vibration meter allows you to conduct vibration analysis at the touch of a button.
The economical and easy-to-use meters display color coded alarm levels for ISO values
and bearing damage (BDU) on the full color OLED display; green (good), yellow (caution), and red (stop).
Meters are perfect for applications that include commercial and industrial HVAC,
food processing, manufacturing, mining, packaging, petrochemical, pulp and paper, power plants, utilities, automotive, and more.
Units provide fast, reliable, and repeatable readings and are designed in a rugged IP67 waterproof body suitable for the most demanding environments.

What's Included:
carrying pouch, and two AA batteries.

Turn the Complex into Complete Comprehension
Have a clear picture of basic machine problems right in front of you by simply entering speed. Easy to use ISO machine alarms along with Bearing Damage (BDU) Reading to tell you overall machine and bearing condition. 800 line spectrum with zoom and moveable cursor to help Identify more complex machine problems.

The TPI-9070 Smart Vibration Meter is the perfect tool for Commercial/Industrial HVAC, Food Processing, Manufacturing, Mining, Petrochemical, Power Plants, Automotive and more!

Features & Benefits:

  • Full Color OLED Display
  • Built-in accelerometer with interchangeable stinger and magnetic mount
  • ISO Built-in Alarms
  • Easily identify bearing problems with BDU Reading
  • Easily identify balance, alignment, looseness problems with our built in band filters
  • 800 line FFT (spectrum)
  • Ruggedized IP67 case
  • 3-year Limited Warranty

Specifications:

  • Size: H 7.95" W 2.36"
  • Weight: 9.8oz (280g)
  • Environmental:
    • Water: IP67 Waterproof
    • Operating: -32°F to 122°F (0C to 50C)
    • Storage: -4°F to 158°F (-20C to 70C)
  • Power supply: 2xAA batteries
  • Battery life: Approximately 50 hours of normal use
  • Frequency ranges: 2/10Hz - 1kHz ISO 2Hz - 3kHz
  • Frequency resolution: 100 / 200 / 400 / 800 lines
  • Displayed amplitude units: Acceleration in g / velocity in inches per second or mm per second / Bearing damage in BDU
  • Displayed frequency units: Hz, CPM or RPM
  • Input range: +/- 50 g
  • Dynamic range: 72 dB
  • Auto set up of VA bands
  • Accelerometer connection: Internal sensor
  • Standard accessories:
    • Pouch with protective cap for pointed stinger
  • Optional accessories:
    • Extended stinger
    • Magnet







Product Type Vibration Meters
Amplitude Acceleration in g; velocity inches per second or mm per second; bearing damage in BDU
Frequency response Hz, CPM or RPM
Frequency range ISO: 2/10 Hz to 1 kHz; g: 2 Hz to 3 kHz
Resolution 100 to 800 lines (FFT)
Dimensions (" H) 8
Dimensions (" D) 1-1/2
Dynamic range 72 dB
Battery life 2-years standby, 1,500 measurements or approximately 50 hours of normal use
Power Two AA batteries
Accelerometer connection Internal sensor
Input ± 50 g
Model 9070
Qty/ea 1
Brand TPI
Memory -
Languages English (default), French, Italian, Portuguese, Spanish, Turkish, Chinese, Japanese, and Korean
Communications -
Dimensions 58 x 203 x 38 mm (W x H x D)
Dimensions (" W) 2-1/3
